Biblegrove R/R update...

43955 Views 180 Replies 37 Participants Last post by  wchasr,
Biblegrove RR
I hope I post the pictures correctly or I'll have to do it all over....

Here are some pictures of my front yard project. I installed the pool this Spring and started on the retaining wall. I pretty much finished the wall with another 50 blocks this week. The hill raises about 6' from the top of the wall to the sidewalk along the side of the house, and are about 30' apart (20% grade?)

I have to use 8' curves and need grade to be less than 3% unless I use this section as downgrade only. Anyways, any ideas or comments will be appreciated, greatly!









looking off the Ridge of the Estate

Good 6-8' waterfall drop next to stairs going along the Concrete "wing" Wall

all done with Mocrosoft paint-the best I can do...

Switchbacks were suggested too...Is it even possible to climb this high as I have mapped out.
If I have to go up 72 inches at 3% grade, how much track length do I need?
See less See more
9
Reply
Save
Like
1 - 13 of 181 Posts
T
BiblegroveRR

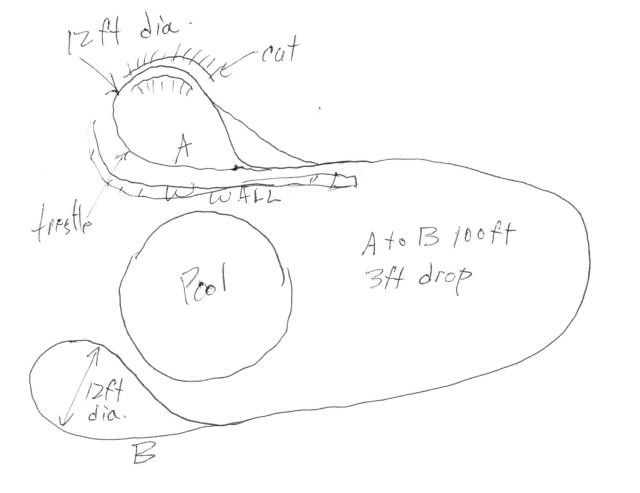

Here is a rough sketch of my suggestion. I think that you should consider going from a loop above the pool to the area next to the pool. Putting 100 feet of track between the two would give you a 3 percent grade. It would take 200 feet of track to go up the hill at a 3 percent grade to rise 6 feet. Doable, but more trouble. Try laying out some garden hose or some electrical conduit to get some ideas.



Terl
See less See more
Reply
Save
Like
T
Biblegrove RR

Bummer man. Best of luck to you.

Terl
Reply
Save
Like
T
There should be sufficient holes in the drain tube so I would think cutting the tube to be unnecessary.

I would be more concerned about the drainage of your retaining wall. You might check with a local landscaping contractor or experienced gardener about your wall and satisfy yourself that it has good drainage and is stable for the height and configuration as built.

I have seen in my local dry climate even low walls of only 2 feet high start to topple over without proper anchoring back into the slope. However we have an expansive clay here so my situation could be very different from yours, which is why I recomend you talk to someone local.

When you put in your track, pay attention to drainage. Don't let the track dam up the slope. Make drainage pipes and bridges in natuaral gulleys. Espeacially where does the water go when it drains off your roof? Your lucky to get work done this late in the winter. Keep us posted.

Terl
See less See more
Reply
Save
Like
T
Biblegroverr

Looking back at your original plan, it might be convenient for you to start the track up the hill at a different place on the lower loop so that it becomes a return loop. Also how about bringing the river meanduring down the hill in the middle of the hill so that the rail road has to bridge is several times on it's way up the hill. It would add more railroad interest.

Terl
Reply
Save
Like
T
Just my opinion, but I am not a big fan of helixs. There is quite abit of tack in that helix, that I think would be more interesting to stretch out and put on the slope. I would definitely mock it up with electrical PVC pipe and compare it to snaking down the slope.

Terl
Reply
Save
Like
T
Let's do some quick calculating for your helix. I would make 10" clearance the minimum from the top of the rail to the Bottom of the bridge above. Assume that it is 2" from the bottom of the bridge to the top of the bridge rail, this would give us an even 1 foot rail to rail. With a 10 foot diameter curve the circumference is about 31 feet and the grade would be 1ft / 31ft = 3.2%. With 8 ft diameter the circumference is 25 ft so the grade is 1/25 = 4%. This would be about the limit for traction on such a curve. Actually you would be much better off to make all your curves level and make the grade of the track steeper between the return curves. For a 2% grade curve with 1 ft of grade rise you would need 1/ 0.02 = 50 feet of circumference, which is about 16 foot diameter. It might be a good idea on your return curves to plan on cutting into the hill on the upper part of the curve and use that dirt to fill in on the lower part of the curve. This would reduce how high your tresttle work would be needed on the lower part and how far (what diameter) it would stick out in the air on the downhill part.

Terl
See less See more
Reply
Save
Like
T
Based upon my experience of fishing derailed trains out of a 14ft long straight tunnel, I would recomend that you shorten up your tunnel as much as possible in favor of an open cut because maintainence will be much easier. I'd recomend that you only use large stones in your retaining wall.

I like seeing the progress you are making.

Terl
Reply
Save
Like
T
By big rocks I means rocks at least as big as the concrete blocks you use on your lower retaining wall. I have found out that over time when I used anything smaller, that they were just too easily pushed around by soil movement, especially for retaining wall purpose.

If you went with two boxes instead of one on your tunnel for access, it would probably make track installation and maintainence much easier. If you have the one box already installed, don't worry about it you can probably get by. I would just use dirt or crusher fines to make the floor of the tunnel, because it is cheap and easy to move around. Hope this helps.

Look forward to seeing your progress.

Terl
Reply
Save
Like
T
Just thought of this idea. Out of wood build a subroad bed on top of the tunnel. Make it one piece or two pieces. Attach the track, then shove the whole thing in from the end. Should conform to the tunnel because you built it on top of the tunnel so it's curveature matches. One suggestion would be to cut a bunch of 1/2" plywood strips about 4" x 18". Now screw two layers together on top of the tunnel with the upper layer of plywood spanning the joint of the layer underneath in a bricklike pattern.

Terl
Reply
Save
Like
T
I recently redid the dirt subroad bed in my tunnels and found a good way to help level the dirt inside. I took a 2x6 board about 4 feet long and shoved it side to side and in and out of the tunnel, from both ends. It acted like a miniture road grader and left the dirt pretty smooth and level. Sorry I took so long to reply to your questions. Hope this helps some.

Terl
Reply
Save
Like
T
I think that the appearance of the rock is just fine without the need of a mortor facade, but that is your asthetic decision. I have found, however, that rock walls mortored together are much more durable than dry walled, but you can stick plants in the cracks with dirt for a more natural appearance.

Terl
Reply
Save
Like
T
Cogradulations on running your first train outside. You have done alot of work on your railroad and it looks good.

Terl
Reply
Save
Like
T
Wow that is a major tressle. Looks like the route up the hill is well designed also. Keep up the good work.

Terl
Reply
Save
Like
