Bachmann bobber to logging caboose bash

13600 Views 25 Replies 15 Participants Last post by Mik, Feb 17, 2009

trainbuffjr

Discussion Starter · Dec 12, 2008

I was looking around upstairs the other day and ran across my Bachmann bobber caboose. it is a nice caboose but it tends to drag on curves, so I decided to add a pair of trucks to it. Once it was on the bench and taken apart I decided that it would make a nice little drovers caboose for my logging line. The results can be seen below. First I took off the cupola and modified the side windows. Then I decided to move the cupola to the back of the car.

so the roof had to be cut to accomodate it

then the cupola was moved back and the remaining roof piece was put in its place

then I marked where the side doors would be and started cutting

the results can be seen below

then the side doors were constructed using coffee stir sticks

then the door tracks and other details were applied

here it is painted and lettered

and with a little weathering and detailing

There is still a little detailing and cluttering to be done and couplers to be added. I will try to get the finished pictures up this weekend. Now I just have to build an engine to pull it!

Aaron
Loyet Logging Company

See less See more

10

1 - 20 of 26 Posts

itsmcgee

· #2 · Dec 12, 2008

nice job. Good use of something most of us have laying around collecting dust. Thanks for sharing.

vsmith

· #3 · Dec 12, 2008

Very cool, Nice looking Crummy!

I love the way that looks with the rolling door. Bachmann bobbers are great bash fodder, they are very cheap and very plentifull. If you have another laying around, maybe consider a shorty bobber:

This Uintah Rwy inspired caboose went together really quickly, I even added an interior, be a nice companion piece for your Crummy.

See less See more

Stan Cedarleaf

· #4 · Dec 12, 2008

Great job, Aaron.... the finished model looks great. I like the added tool detail.

Jim Agnew

· #5 · Dec 12, 2008

Good job Aaron. great to have new talent in the club.

Ray Dunakin

· #6 · Dec 12, 2008

Very nice work!

R.W. Marty

· #7 · Dec 13, 2008

Aaron,
That's a great bash to come up with a woods crummy. a little more dirt and wear & tear and it will look
just perfect in your logging train.

I want to thank you again for your Cat 60 thread a while back. It got me off the dime and started.
I have 2 cats about half done. I took your advice and started with the John Deere 430 crawlers and went
from there.

Good work
Rick Marty

aceinspp

· #8 · Dec 13, 2008

Really nice looking. I need to add the four wheel trucks to mine. Makes for one neat cabeese. Later RJD

the colonel

· #9 · Dec 13, 2008

Looks good!!!
What did you use for trucks?
and how did you install them?
I've got one of these bobbers that would look much better
with eight wheels instead of four under it.

Dan "The Colonel" Mahony
Dover, NH

trainbuffjr

Discussion Starter · #10 · Dec 13, 2008

Thanks Guys!
Vic, that is a great looking caboose, I may have to try making one.

Rick, glad to hear I inspired someone. Please post pictures when there done.

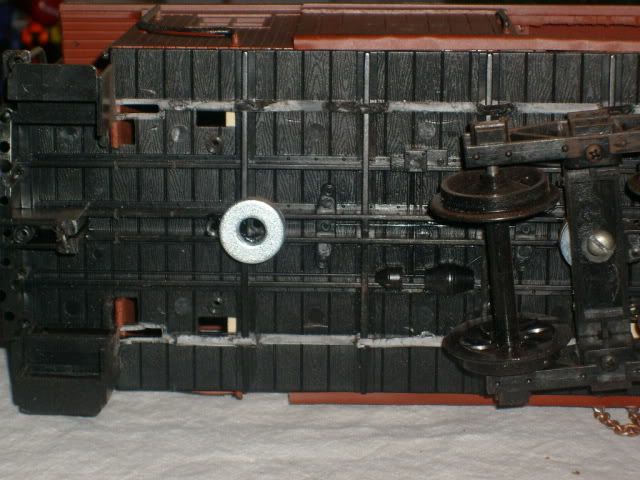

Dan, once the original journals were cut of I glued a stack of washers to the frame and drilled a hole and just screwed the trucks to them. The trucks are from a USA Trains work car, but they are the same as Bachmann and LGB. I was going to use some Arist-Craft delton freight trucks but the wheelbase is to long and will not fit between the original steps. Below are some pictures of how it was done.

Aaron Loyet Logging Company

See less See more

2

vsmith

· #11 · Dec 14, 2008

I converted a 2 axle LGB toyrtain caboose like that, I used a shaped bolster of 1/4 sq. strip of basswood glued flat under the body and then used the same washer technique glued down for the truck to rest on.

Les

· #12 · Dec 15, 2008

Thank you for posting the step-by-step pixes!

Les

Mik

· #13 · Dec 17, 2008

I already had trucks under mine (something like 6 years ago), but I really like your side door idea.

Steamnutt

· #14 · Dec 17, 2008

Aaron,
nice job on the bash! I've done several bashes using the little bobbers, but I really like your idea. I think I may have a winter project in the works.

Thanks for sharing

Les

· #15 · Dec 18, 2008

Again, thanks for the step-by-step pixes. I copied 'em to my 'to build' folder, hope you don't mind! Great, great job.

Les

Bill4373

· #16 · Dec 18, 2008

Here are 2 "bashed" bobbers.

See less See more

2

trainbuffjr

Discussion Starter · #17 · Dec 19, 2008

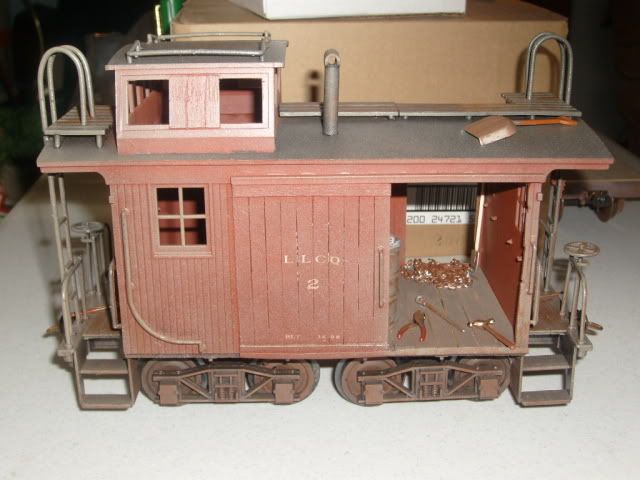

Great looking cabooses Bill! Here are a few more pictures with the link & pin couplers installed and some more clutter, Now its on to some interior details.

Aaron
Loyet Logging Company

See less See more

3

Les

· #18 · Dec 19, 2008

Bill,

Nice. I'm gonna file it with the others. I finally woke up and said, "Yo. You can make a folder on the front of your computer (aka Desktop) and put all sorts of these good things in there."

Computers are a means to an end, for me.

Thanks for posting 'em!

Les

See less See more

Les

· #19 · Dec 19, 2008

Aaron,

Adding to the orig file. Now, looking at your pin pockets, I'd not noticed that they stick out. Mostly you see pixes of 'em mounted against the end-piece. Some log cars show 'bumpers' roughly like the Brits have, but not many. If one does that, it means a longer pin when used on a shorter radius. Long pins might cause their own problems. So, another answer I got.

Thanks for posting.

Les

Mik

· #20 · Feb 14, 2009

I'm bumping this topic because I finally got around to stealing the idea, lol.

Kim is lazing around in bed, grumping about her broken foot, and complaining because the Vicodins they gave her really don't do much of anything.... so I needed a portable project to keep her company.

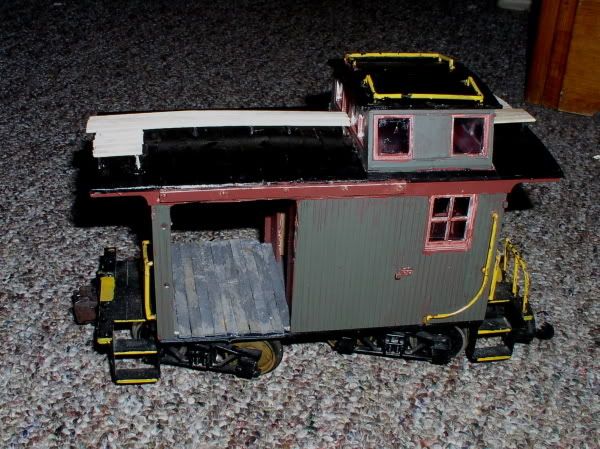

Progress after one evening's work....

See less See more
